YACseries

RoHS

Three-Phase Four-Wire System 500VAC 25-300A
High-Attenuation from 150kHz to 1MHz
1-Stage: 25-80A , 2-Stage Filter: 120-300A

Warranty Period 5-year

Features

Three-Phase Four-Wire System EMI/EMC Filter ideal for High-power office equipment and Energy storage systems
Suitable for 150kHz to 1MHz conduction noise reduction
Product lineup that can flexibly respond to system and capacity changes in a compact/same body size

Model Line-up

YAC-25

Released 2023

Three-Phase Four-Wire System 500VAC　25A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter

YAC-36

Released 2023

Three-Phase Four-Wire System 500VAC　36A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter

YAC-64

Released 2023

Three-Phase Four-Wire System 500VAC　64A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter

YAC-80

Released 2023

Three-Phase Four-Wire System 500VAC　80A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter

YAC-120

Released 2025

Three-Phase Four-Wire System 500VAC 120A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter

YAC-160

Released 2025

Three-Phase Four-Wire System 500VAC 160A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter

YAC-200

Released 2025

Three-Phase Four-Wire System 500VAC 200A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter

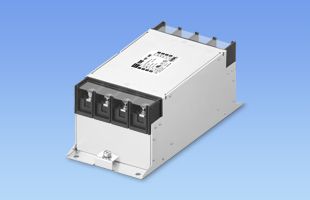

YAC-300

Released 2025

Three-Phase Four-Wire System 500VAC 300A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter
Table1 Product Status Information
No. Product Status Definition
1 New Product New Product. Recommended for new design.
2 Recommended Recommended for new design.
3 blank Product in mass production
4 NRND Not recommended for new design.
5 To be discontinued PDN (Product Discontinuation Notice) is issued and LTB (Last Time Buy) is under consideration.
6 Discontinued LTB order is no longer available.
