Three-Phase Four-Wire System 500VAC 120A
High-Attenuation from 150kHz to 1MHz
2-Stage Filter
High-Attenuation from 150kHz to 1MHz
2-Stage Filter
| Warranty Period | 5-year |
|---|
Features of YAC-120

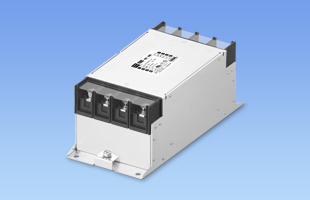

Three-Phase Four-Wire System EMI/EMC Filter ideal for High-power office equipment and Energy storage systemsSuitable for 150kHz to 1MHz conduction noise reduction
Product lineup that can flexibly respond to system and capacity changes in a compact/same body size
Ordering Information and Options
YAC(1) - 120(2) - 685(3)
(1) Model Name(2) Rated Current
(3) Line to Ground Capacitor Code
Refer to Product Line-up.
Product Line-up
| Product Name | Leakage Current* | Line to ground capacitor (nominal value) |
|---|---|---|
| YAC-120-685 |
10.7mA typ *1 55mA max *2 |
CY1: 6.8μF |
*Y-Connection
*1 At normal operation (Input 500V 50Hz) with applying 10V between N (N') and FG (According to IEC60939) .
*2 At the worst case under normal operation (Input 500V 60Hz) .
- Catalog (Including Dimensions)
- Instruction Manuals (Including attenuation characteristics)
- Technical Notes
Specification
| Contents | Specifications | |
|---|---|---|
| Rated Voltage | Three-Phase Four-Wire System Y-Connection 500/289VAC 50/60Hz | |
| Rated Current | 120A | |
| Operating Temperature | -40 to +85℃ (Refer to Derating Curve) | |
| Agency Approvals |
UL60939 [Overvoltage Category: Ⅲ Altitude: 3000m] CSA C22.2 No.8 (C-UL) EN60939 (DEMKO) [Overvoltage Category: Ⅲ Altitude: 3000m] ENEC |
|
| Others | Dimensions (WxHxD) | 157x140x340 mm [6.18x5.51x13.39 inches] |
| Weight | 9.0kg max | |
| Warranty Period | 5-year | |
- * For further information and how to use, please see in Cosel product catalog.
Circuit Diagram
Derating Curve
Documents Download
| Technical Data | ||
|---|---|---|
| CAD Data | DXF | |
| 3D CAD Data | STEP | |
| IGES | ||
- * For another documents aren't listed, please feel free to contact to a Cosel representative.
