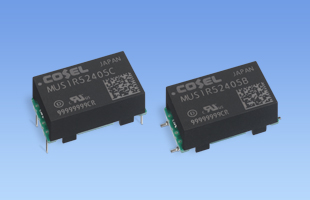

Features of MUS1R5053R3
• SMD mounting type and through-hole mounting type• High efficiency
• Built-in overcurrent protection circuits
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
Ordering Information and Options
MU(1) S(2) 1R5(3) 12(4) 05(5) B(6) - □(7)
(1) Series name(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
B: SMD
C: DIP
(7) Optional
Specification
| Contents | Specifications | |
|---|---|---|
| Input Voltage | DC4.5 - 9V | |
| Output | Wattage | 1.32W |
| Voltage/Current | 3.3V 0.4A | |
| Adjustable Voltage Range | Fixed (TRM pin open) +10%, -5% adjustable by external VR | |
| Protection Circuit And Others | Overcurrent Protection | Works over 105% of rating and recovers automatically |
| Overvoltage Protection | - | |
| Remote ON/OFF | - | |
| Remote Sensing | - | |
| Others | - | |
| Operating Temperature/Humidity | -40 to +100℃, 20 - 95%RH (Non condensing) (Required Derating) | |
| Safety And Noise Regulations | Agency Approvals (At only AC input) | UL62368-1, C-UL(equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1 |
| Conducted Noise | - | |
| High Attenuation | - | |
| Others | Dimensions (WxHxD) | 21.4x8.5x13.4mm |
| Weight | 3g max | |
| Cooling Method | Convection/Forced air | |
| Warranty Period | 5-year | |
- * For further information and how to use, please see in Cosel product catalog.

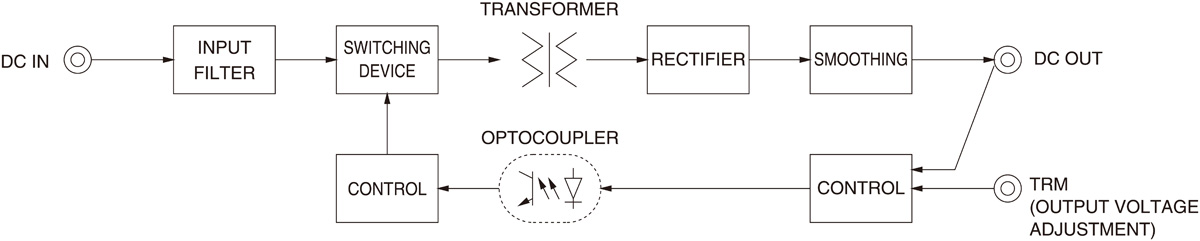

Block Diagram
Documents Download
| Technical Data | ||
|---|---|---|
| CAD Data | DXF | |
| 3D CAD Data | STEP | |
| IGES | ||
- * For another documents aren't listed, please feel free to contact to a Cosel representative.
