YAWseriesDiscontinued (May, 2018)

RoHS

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 5 - 10W

Warranty Period 2-year

For further information of replacement, please refer to each model information.

Features

• Universal input voltage (AC85 - 264V)
• P.C.board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size
• S.M.T. (Surface Mount Technology) implemented for smaller and lighter weight

Model Line-up

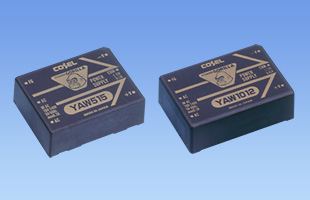

YAW5

Discontinued (May, 2018)
Released 1991

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 5W
Rated Output Voltage: ±12 (+24）,±15 (+30）

YAW10

Discontinued (May, 2018)
Released 1991

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 10W
Rated Output Voltage: ±12 (+24）,±15 (+30）
Table1 Product Status Information
No. Product Status Definition
1 New Product New Product. Recommended for new design.
2 Recommended Recommended for new design.
3 blank Product in mass production
4 NRND Not recommended for new design.
5 To be discontinued PDN (Product Discontinuation Notice) is issued and LTB (Last Time Buy) is under consideration.
6 Discontinued LTB order is no longer available.
