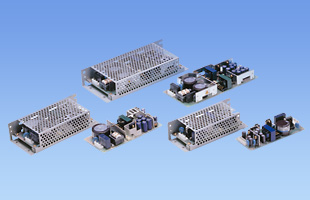

LDCseriesDiscontinued (September, 2023)

RoHS

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 15 - 60W

Warranty Period 2-year

This power supply is manufactured by SMD technology. The stress to P.C.B like twisting or bending causes the defect of the unit, so handle the unit with care.
*No alternatives available

Features

• Small and compact PCB construction
• Universal input voltage (AC85 - 264V)
• UL recognized, TÜV approved, CSA certified
• Built-in inrush current, overcurrent and overvoltage protection circuits

Model Line-up

LDC15F

Discontinued (September, 2023)
Released 1994

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 15W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

LDC30F

Discontinued (September, 2023)
Released 1994

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 30W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

LDC60F

Discontinued (September, 2023)
Released 1995

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 60W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

Optional parts are available. (For further information, please see each model information.)

Table1 Product Status Information
No. Product Status Definition
1 New Product New Product. Recommended for new design.
2 Recommended Recommended for new design.
3 blank Product in mass production
4 NRND Not recommended for new design.
5 To be discontinued PDN (Product Discontinuation Notice) is issued and LTB (Last Time Buy) is under consideration.
6 Discontinued LTB order is no longer available.
